Character of Device

This device uses high-efficient stainless steel packing. The distillation column is made of stainless steel in order to prevent the scrap iron from blocking the column and delay the service life of the device. In the device, the parts contacting with the alcohol such as condenser, surge tank and cooling coiler are made of stainless steel in order to prevent the finished alcohol from being polluted. The distiller uses U-shaped detachable heating tube. During the overhaul, U-shaped heating tube can be drawn out from the distiller in order to easily clean the

external wall of heating tube and wall of distiller. This device can make the batch production or semi-continuous and continuous production.

Main Usage

This device is applicable to the recycling of dilute alcohol from the industries such as medicine, food, light industry and chemical industry. It is also applicable to the distillation of other solvents such as methyl alcohol. The device can distill the dilute alcohol at about 30℃ to alcohol at 90℃-95℃ according to the customers’ demand. If there is higher requirements for the degree of finished

alcohol, the reflux ratio can be increased. But, the output will decrease relatively.

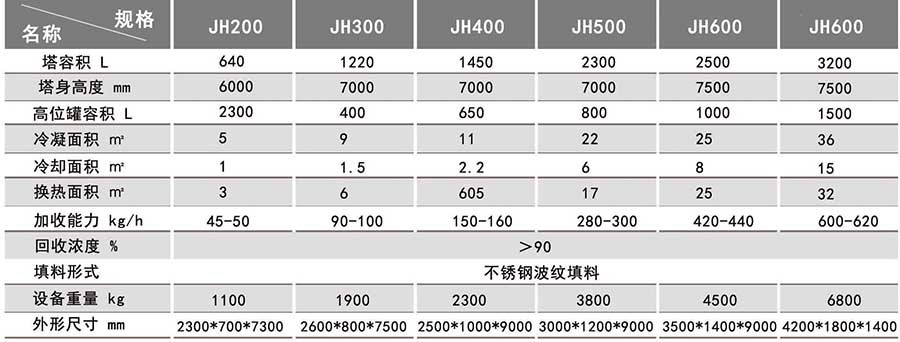

MAIN PARAMETERS
