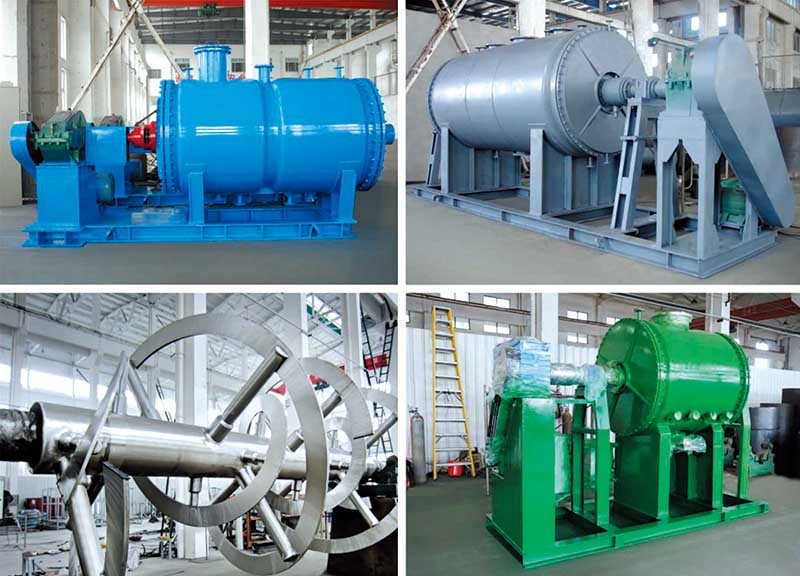

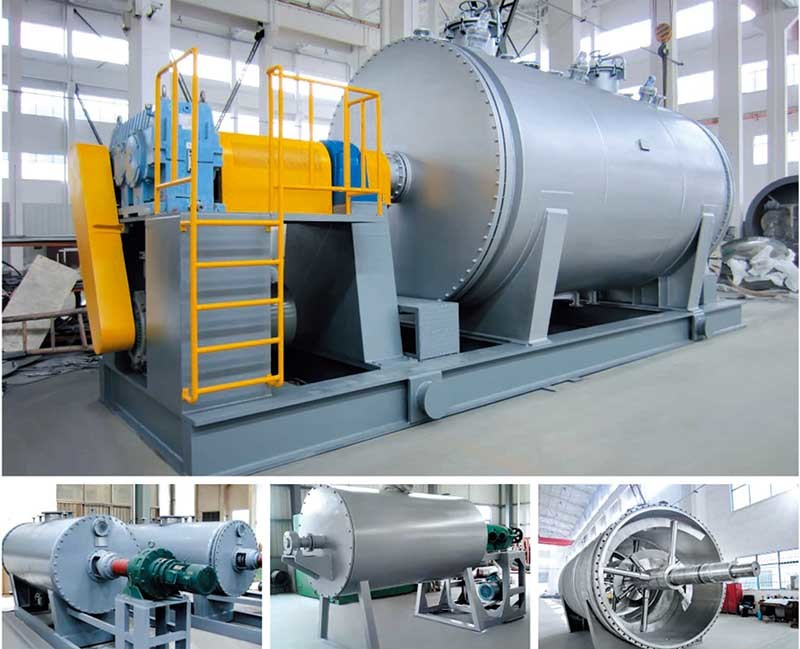

SUMMARY

Has a simple structure, easy operation, long lIte cycle,stable and reliable performance, small steam consumption, applicability, good product quality,especially for not high temperature, drying flammable,high temperature easily oxidized material paste, which after long-term use machine proved to be a good drying equipment.

PRINCIPLE

Founder of dry material from the casing to join the middle,stirring constantly positive and negative rotation of the rake teeth, material axially back and forth in contact with the surface of the housing wall continuously updated by indirect steam heating, stirring uniform tooth harrow，grinding rods grinding to a moisture vaporization material inside, under the action of the vacuum system so that is more favorable discharge dRYING water and surface water, the water vaporized by the dry dust, wet filter, condenser, venting from the outlet of the pump.

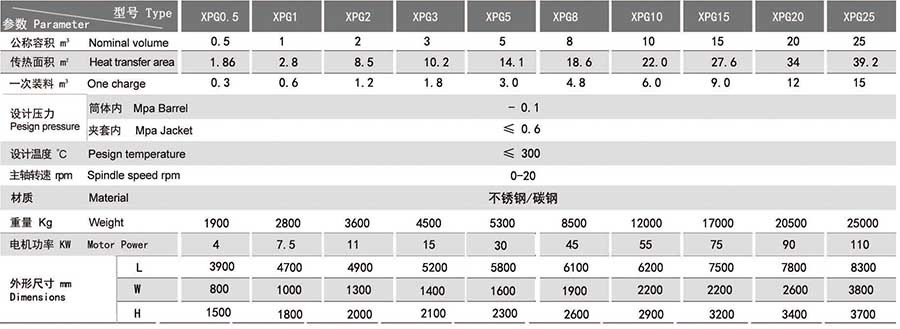

MAIN PARAMETERS

Note: 1.Pressure and temperature can be designed according to customer needs.

2.In oldei to increase the hcat transter area to improve the heat transfer effect,stirring shaft,rake teeth can be des gned with heating function.
