CAPABILITY AND CHARACTER

Even the flux was small. the thin-film evaporation also can come in to being the thin-film because of its centrifugal type glide grove rotor. The accretion deposits in the treating liquid that adhere on the inside shell of the evaporation part is swept off by movable squeegee. Compare with the gapping squeegee evaporator, the evaporation capacity may enhance 40-69% the character as follows:

◆The higher value of heat transfer coefficient, the bigger evaporation capab-ility, the intensity of evaporation can arrive 200kg/m, the higher thermal efficiency.

◆The shorter heating time for the production, about 5-10 second, working in the vacuum circumstance, the more benefit to the heat sensitivity production, to sure the product quality.

◆Adapt to the production with grreat variation range viscosity, even can deal with the viscosity value up to 100000CP.

◆Can adjust the evaporating time by changing groove orientation of the rotor.

◆Inside shell of the evaporation part is precision boring, so the surface is not easy to coke and encrust.

◆Easy to operate and adjust for production guideline, under the close the close circumstance, realize the continuity working by automatic control

◆The smaller floor area, the simpler structure, convenient to maintain, easy to clean.

SUMMARY

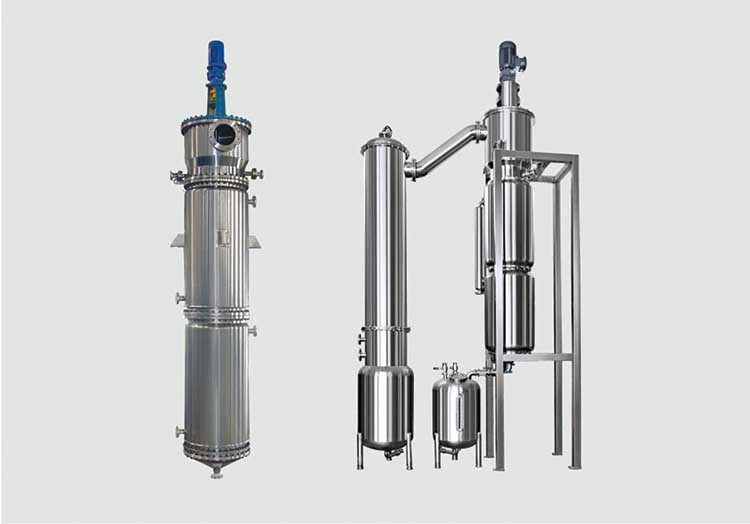

The machine is a high-feeiciency evaporation and distilation equipment Which separte liquid to a flat thin-film by making use of the high-speed revolver. as well as seatening, debubbling reacions and some unit operations, eg.Heating, cooling etc. it can be widely used in chinese

and westrn pharmacy, food, light industry. petroleumchemical, environmental protection industries etc.

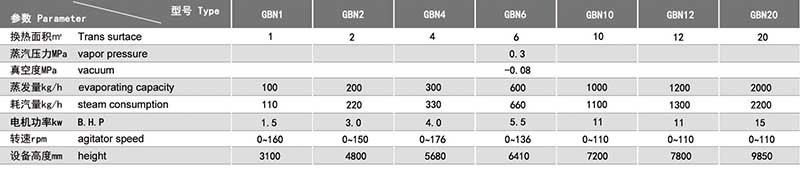

MAIN PARAMETERS
