working principle

Working Principle: The flaking of drum is a cooling crystallization process. In the charging tray, fusing feed liquid contacts with cooling drum and then forms the film on the surface of drum. After heat transfer between the film and drum wall, the film becomes cool and crystallized. After scrapping the crystalline film with scraper, it becomes the sheet product. Drum drier is a kind of continuous operation equipment

that the rotating drum heats and dries the liquid phase material or zonal material attached on the external wall of drum by the way of heat transfer.

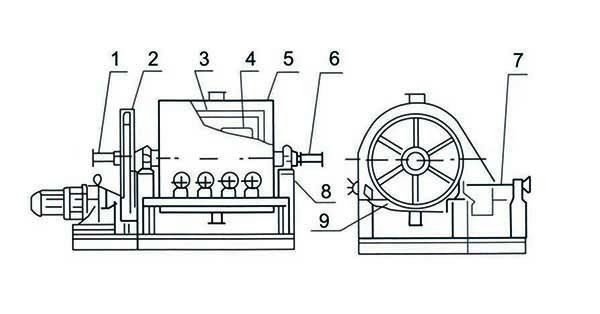

Introduction of Structure

1.Water Inlet

2.Drive Parts

3.Drum

4.Cooling System

5.Encloser

6.Outlet System

7.Scraper System

8.Rack

9.Charging Tray

Equipment Character

◆Equipped with side scraper in order to avoid the accumulated material on the side end of drum.

◆With compact structure, small floor area.

◆Half-pipe jacketed charging tray, safe and reliable.

◆Atomized cooling, it has good cooling effect.

◆Step less speed regulation, turning speed of drum can be regulated.

◆The precision of drum is high.

◆Wide application, simple operation and flexible.

◆Adopting the multiple units of scrapers, flexible regulation.

◆Multi-function, it can be used for flaking and drying.

Application scope

FLAKING

◆High polymer products such as polyethylene oligomer, petroleum resin, OPE

◆Organic chemical products such as phthalic anhydride, maleic anhydride, naphthol, peregal, higher aliphatic alcohol, chloroacetic acid, TMP,    guanidine nitrate, bisphenol, M-stearic acid

◆Inorganic chemical products such as sodium sulfide, caustic soda, sodium bisulfide and calcium chloride

DRYING

◆Syrupy fuel such as sulphur black

◆Isuch as NaH2CO3, NaPO4, MgCl2

◆norganic solution

◆Food solution such as skim milk and milk.

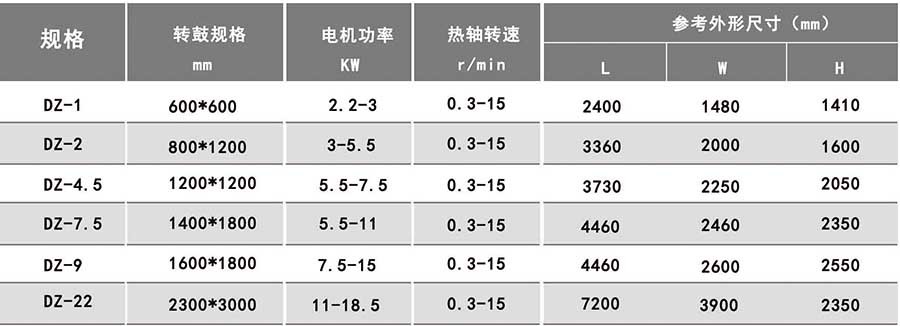

MAIN PARAMETERS

Note: We can provide the drum flaker (drier) with standard size for the customers or provide the drum

flaker (drier) with special size according to the demand.
