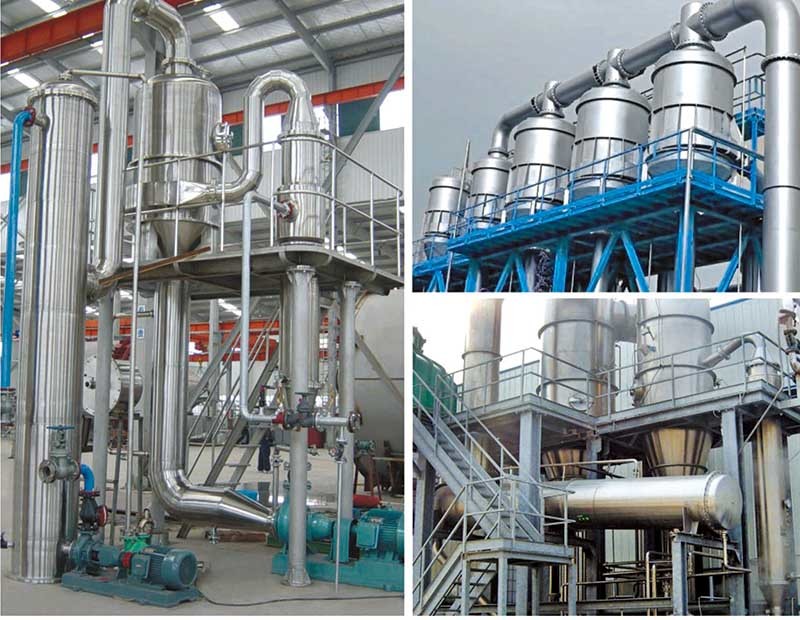

SINGLE-EFFECT FORCED FALLING FILM EVAPORATOR

Model and specification: NQZ01-XX XX- water evaporation amount:(T/h):1、1.5、2......

TRIPLE-EFFECT(OR FOUR-EFFECT,five-EFFECT.six-EFFECT) FORCED FALLING FILM EVAPORATOR

Model and specification:NQZO3(或04、05、06)-XX XX- Water evaporation amount(T/h):8、10、12、13、15、18、24、30、36、46、55、75、95、110、140、165、200、240、270、300......

DOUBLE-EFFECT FORCED FALLING FILM EVAPORATOR

Model and specification: NQZ02-XX XX- water evaporation amount:(T/h):2、4、5、6、8、9、11......

PIONEER IN THE HIGH CONCENTRATION OF EV APORATION CONCENTRATION

◆Evaporation crystallization technology

◆Evaporation heat treatment technology

◆Forced circulation

◆Planting technology

◆With absolutely leading market share

APPLICABLE RANGE

Suitable for high concentration, high viscosity, containing insoluble solids concentration crystal such as materials for evaporating crystallization.

SYSTEM COMPONENTS

Evaporator, condenser, separator(crystalizer), circulating pump, pump or control valve, vacuum and drainage systems, steam manifold, operation platform, electrical instrument control cabinet, valves and piping system.

With large flow pump makes material on heat transter surface of high-speed flow evaporator, heat transter components including pipe type, plate type two kinds of heat exchange structure.

MAIN CHARACTERISTICS

◆Cocnentration ratio is big, forced circulation, make the viscosity larger easy flow of material liquid evaporation

◆The evaporator by forced circulation in the tube heated evenly,can prevent the phenomenon of”dry wall ”.

◆The shortcoming is mainly of pump flow is big, the power consumption is relatively high. Equipment vibration caused by large because of the large pump flow rate at the same time, and must be whole bearing in the workshop or supporting frame, and steel structure workshop or steel structure to support investment is larger.

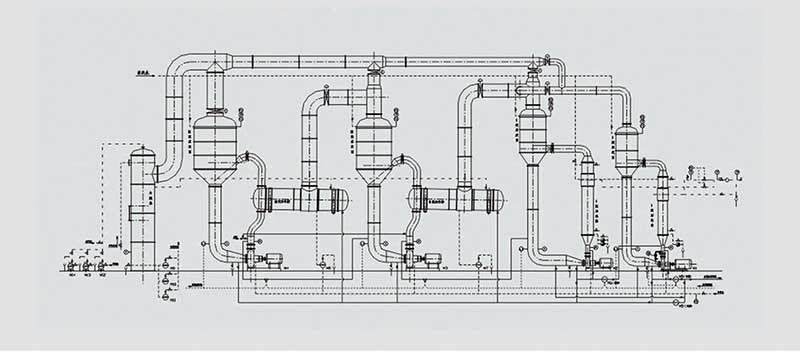

FLOW FIGURE OF TRIPLE-EFFECT FOUR-SECTION FORCED CIRCULATING EVAPORATOR
