STRUCTURAL FEATURES

The mixing tank is a kind of accessory equipment supplying the basic materials for the fermentation tank. In order to get good  steam-solid

basic materials in the equipment, the damper and blender are set in the tank. The size of damper is decided by the diameter and height of tank body. The blender uses the rotary blades. The size of blender is decided by the diameter of tank body. In order to ensure the material and steam can be delivered to fermentation tank without any leak, we replace the previous pump-delivery method with air pressure method. So, this equipment has good sealing property (the mechanical shaft seal of single end face is adopted). Considering that the operator can often observe the material-steam stirring situation in the tank and know about the whole material-steam delivery process, we put 2 sight glasses for observation during the design.The feed opening is also the manhole. The repairman can carry out the installation and repair in the tank via the iron ladder. In order to facilitate the workers’ operation, the changed tubes set on the upper head are put on the right near the manhole. It is very convenient to open the valve with right hand. So, this equipment has good practical value.

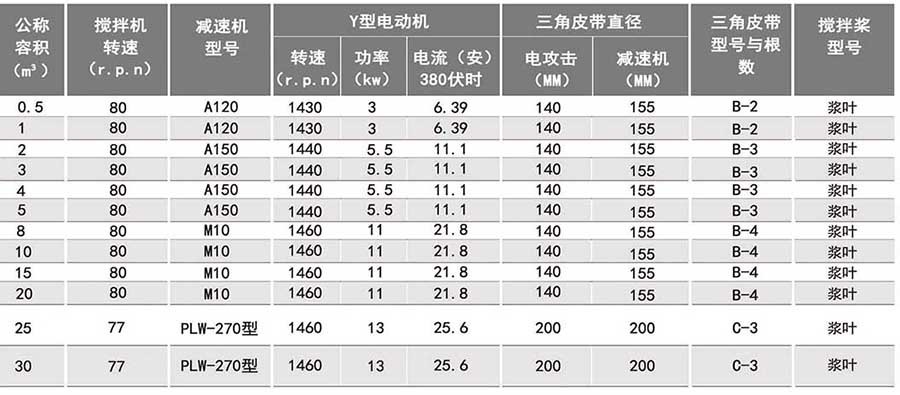

MAIN PARAMETERS
